Rigid Box Dimensions: Sizes & Wall Thickness Guide

A rigid box is the premium end of packaging — the sturdy, unbending box you see around watches, phones, and luxury gifts. Because its walls are thick, sizing a rigid box is a little different from a folding carton. Rigid box dimensions are the length, width, and height of the box, with the wall thickness built in. At Discount Box Printing, we make custom rigid boxes to any size on thick board wrapped in printed paper, factory-direct across the United States. This guide covers how rigid sizes are measured, why wall thickness matters, a full size chart, sizes by style, and how the wrap is printed. For the wider view, see our complete custom box dimensions guide.

What Are Rigid Box Dimensions?

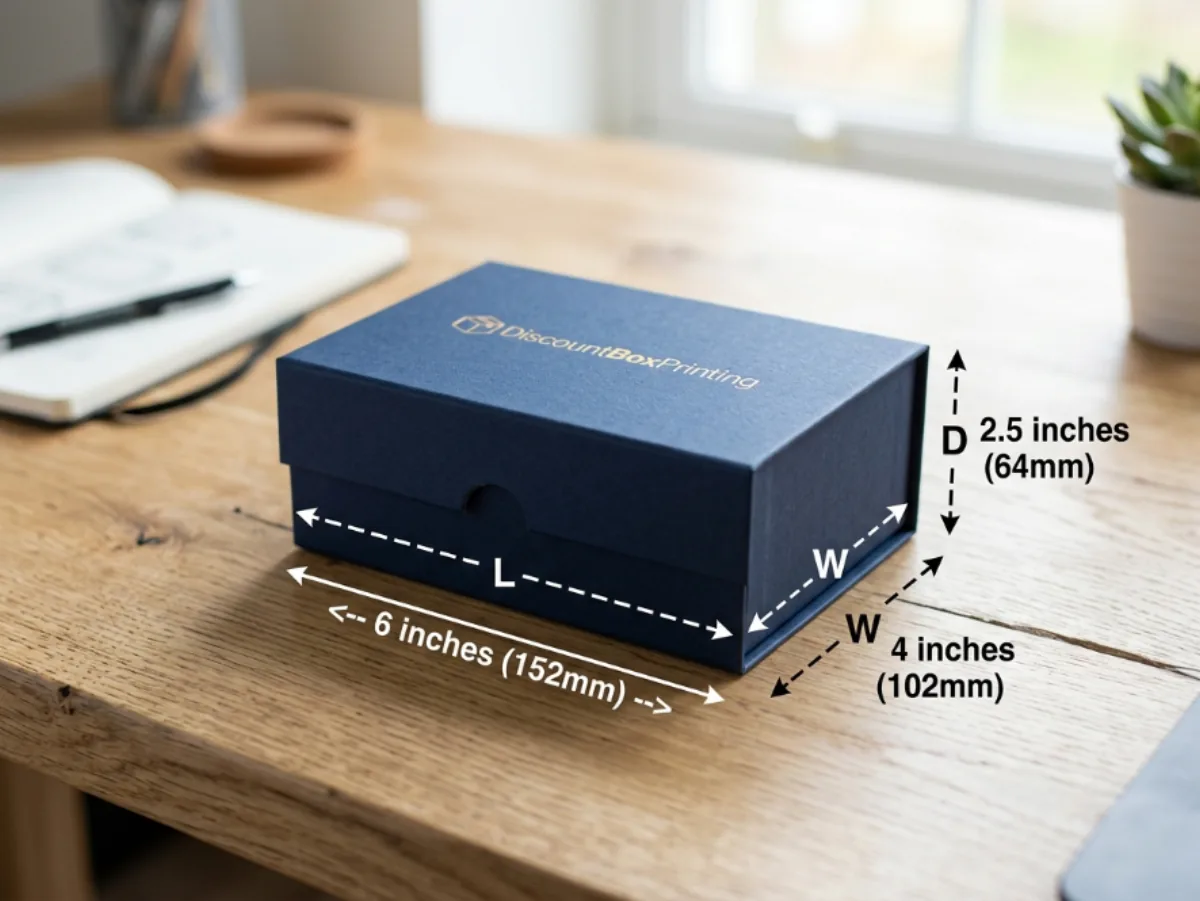

Rigid box dimensions are the three measurements that define the box: length, width, and height. They are always written in that order — L × W × H. Length is the longest side of the opening. Width is the shorter side. Height is the depth from the base to the top. A box listed as 9 × 9 × 3 inches is 9 inches long, 9 inches wide, and 3 inches deep.

Rigid boxes are also called setup boxes. They are built from thick, pre-cut chipboard that is wrapped in printed paper, so they hold their shape and never fold flat. That thick wall is why the inside-versus-outside gap matters more here than on any other box style.

How Rigid Box Size Is Measured

Always size a rigid box by its internal dimensions — the usable space your product sits in. The external dimensions are larger because each wall is thick board plus a paper wrap. On a 2 mm board, every wall adds about 2 mm per side, so the outside of the box is noticeably bigger than the inside. Measure your product at its widest points, add a little clearance plus room for any foam or tray insert, and we build the cavity to fit. Tell us the product size and we handle the wall math.

Why Rigid Box Size Matters

Size affects three things at once. First, fit and feel: a rigid box should hold the product snugly in a fitted insert, because movement ruins the premium feel. Second, cost: rigid boxes use more material than folding cartons, so every spare inch adds real cost. Third, presentation: the lid and base have to align cleanly, which depends on accurate dimensions. For rigid boxes, precision is the whole point — the luxury feel comes from a tight, exact fit.

Quick Answer: What Is a Standard Rigid Box Size?

There is no single standard, because rigid boxes are made to fit products. That said, a common small rigid box is around 6 × 6 × 2 inches, a popular medium is 9 × 9 × 3 inches, and a frequent large is 12 × 12 × 4 inches. Most premium brands order a custom size with a fitted insert built to their product.

Rigid Box Dimensions Chart

These are popular rigid box sizes by use case. Every size below is fully customizable — treat them as starting points, not limits.

Use Case	Inches (L × W × H)	Centimeters	Millimeters
Jewelry / small gift	4 × 4 × 2	10.2 × 10.2 × 5.1	102 × 102 × 51
Watch / accessory	6 × 6 × 2	15.2 × 15.2 × 5.1	152 × 152 × 51
Cosmetics / electronics	9 × 9 × 3	22.9 × 22.9 × 7.6	229 × 229 × 76
Apparel / large gift	12 × 12 × 4	30.5 × 30.5 × 10.2	305 × 305 × 102
Shirt / two-piece box	14 × 10 × 2	35.6 × 25.4 × 5.1	356 × 254 × 51
Drawer / slide box	8 × 5 × 2	20.3 × 12.7 × 5.1	203 × 127 × 51

Rigid Box Styles & Sizing

Rigid boxes come in several styles, and the style changes how the box opens and how you size it. These are the ones we make most:

Style	How It Opens	Best For
Two-piece (lid & base)	Lift-off lid over a base	Apparel, gifts, premium goods
Magnetic closure	Hinged lid with a magnet snap	Subscription, luxury unboxing
Drawer / slide	Inner tray slides from a sleeve	Chocolates, jewelry, small sets
Hinged lid	Attached lid folds open	Keepsakes and presentation sets
Collapsible rigid	Folds flat to ship, snaps up	Premium look with lower freight

Browse the styles: two-piece boxes, magnetic closure boxes, drawer boxes, and collapsible rigid boxes. For gifting, see custom gift boxes.

Wall Thickness & Board

The rigid feel comes from the board. Most rigid boxes use grey chipboard from about 1.5 mm to 3 mm thick, wrapped in printed paper. Thicker board feels more premium but adds size and cost. Here is a simple guide:

Board Thickness	Feel	Best For
1.5 mm (~60 pt)	Light but firm	Small, light products
2 mm (~80 pt)	Standard premium	Most rigid boxes
2.5 mm (~100 pt)	Heavy and solid	Luxury and heavier goods
3 mm (~120 pt)	Very strong	Top-tier luxury presentation

Remember that thicker walls grow the outside of the box, so factor the board into your shelf or shipper space. Not sure which to pick? Tell us the product and we will recommend the board. See more in our rigid boxes guide.

Print & Wrap Guidelines

Rigid boxes are not printed directly. Instead, the board is covered with a separately printed wrap — a sheet of paper that folds over the edges. So your artwork is set up for the wrap, with a little extra on every side that turns in over the walls. These are the specs we recommend:

Specification	Recommended
Wrap turn-in	~15 mm extra on every edge to fold over
Bleed	1/8 in (3 mm) past the trim
Safe zone	Keep text 1/4 in inside edges and corners
Resolution	300 DPI at final size
Color mode	CMYK (plus Pantone and foil for brand colors)
File format	Print-ready PDF, AI, or EPS

The turn-in is the wrap material that folds over the wall and inside the rim, so plan a clean margin there. A dieline shows the wrap shape and where it folds. Our team prepares a free dieline and proof for your exact size, so you never build one from scratch. Finishes like foil, emboss, and soft-touch lamination all sit on the wrap.

How to Choose the Right Rigid Box Size

Start with the product, not the box. Measure your item at its widest, tallest, and deepest points. Add clearance for a fitted foam or board insert, since rigid boxes are about a snug, premium hold. Pick the wall thickness from the product weight and the feel you want. Then remember the walls add to the outside size, so check the box still fits your shelf or shipper. If you sell a set, a shared base size with different inserts keeps tooling simple.

Rigid Box Sizing Tips

• Size to internal dimensions. Your product fits the inside; the thick walls add to the outside.
• Plan the insert. A fitted insert holds the product still and makes the box feel premium.
• Account for wall thickness. A 2 mm wall adds about 2 mm per side to the outside size.
• Match board to weight. Heavier or luxury goods suit 2.5 to 3 mm board.
• Order a sample first. A real prototype confirms the fit, the lid alignment, and the feel.

Common Rigid Box Sizing Mistakes

The most common error is ignoring wall thickness, so the finished box is bigger outside than expected and no longer fits the shelf or shipper. Next is skipping the insert, which leaves the product loose and kills the premium feel. Brands also forget the wrap turn-in, so artwork runs short at the folds. Finally, choosing board that is too thin makes a luxury box feel cheap. Each of these is easy to avoid once you size by the inside, plan the insert, and confirm with a sample.

Need a Custom Rigid Box Supplier?

Discount Box Printing makes rigid boxes to your exact dimensions on the board and finish you want, with no setup fees, low minimums, free design and dielines, and free delivery across the USA. Whether you need one keepsake box or a full luxury line, we build the box and insert around your product. Want a gifting look? See our custom gift boxes range.

Final Thoughts

Rigid box dimensions come down to one rule: build the box around the product by its internal space, then let the thick walls and wrap add to the outside. Get that right, plan a fitted insert, and pick the board for the feel you want, and you get a box that protects the product and feels genuinely premium. Not sure which size or board fits? Order a free sample kit to compare boxes in hand, or request a free quote and our team will reply within one business day with pricing, a dieline, and a free proof for your custom rigid boxes.
